ZH126 – 3.2 Meter

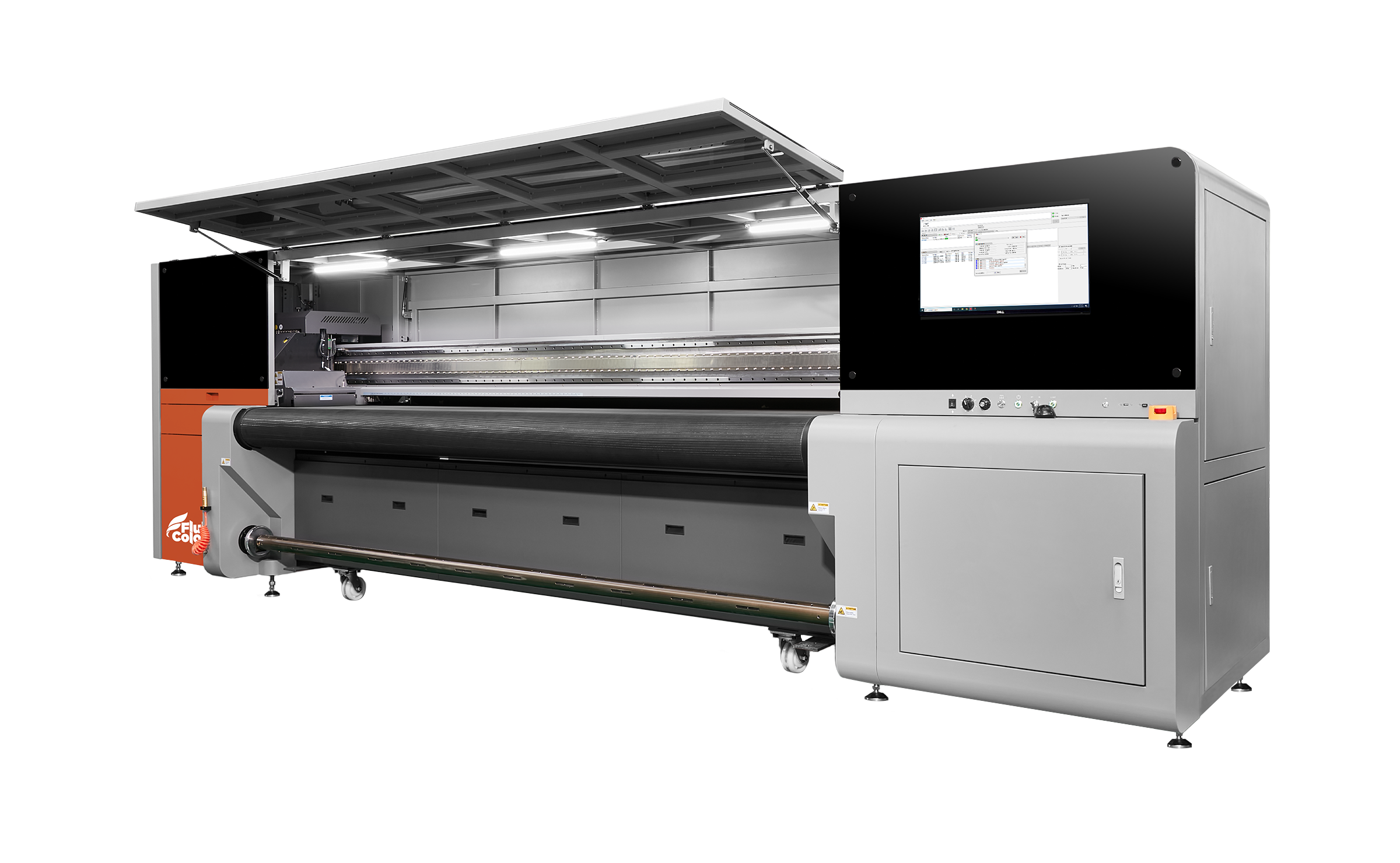

Fluid Color ZH126
126-inch rigid and roll-to-roll production powered by Kyocera printheads at speeds up to 2,848 square feet per hour.
The Fluid Color ZH126 is a 3.2-meter industrial hybrid LED UV printer built for print providers that need the flexibility to produce both rigid board and roll-fed graphics. With Kyocera printhead technology, a maximum print width of 125.98 inches, water-cooled LED UV curing, and production speeds up to 2,848 square feet per hour, the ZH126 combines speed, versatility, and industrial performance in one production platform.
Print It All — Rigid or Roll
Production needs can change from job to job. One day may require rigid signage and display boards, while the next requires banners or other roll-fed graphics. The ZH126 is designed to handle both on one industrial printing platform.
With a 3.2-meter printing width, Kyocera industrial printheads, media tables for board printing, independently controlled vacuum zones, and production speeds reaching 2,848 square feet per hour, the ZH126 gives shops a versatile solution for high-volume hybrid production.
Up to 2,848 Square Feet Per Hour
The ZH126 is built for production environments where throughput matters. Express-mode speeds reach up to 2,848 square feet per hour, equivalent to approximately 60 standard 4 × 8-foot boards per hour.
Operators can select the production mode that best matches each application, including Outdoor mode at up to 1,073 square feet per hour and Quality mode at up to 482 square feet per hour.
One Printer. Rigid and Roll-to-Roll Production.
The ZH126 combines rigid board printing and roll-fed graphics on one 126-inch platform, helping print providers expand application capability without dedicating separate printers to each workflow.
Rigid Board Printing
Included media tables support direct printing to rigid sheets and boards up to 1.96 inches thick.
Roll-to-Roll Graphics
Move from rigid media to flexible roll-fed production for banners, display graphics, and other wide-format applications.
126-Inch Print Width
A maximum print width of 125.98 inches provides 3.2 meters of production capability for large-format applications.
Powered by Kyocera Printheads
The ZH126 uses Kyocera industrial printhead technology with configurations from 4 to 10 printheads. Double-row and symmetrical printhead arrays provide flexible configuration options for shops with different production and application requirements.
4–10 Kyocera Printheads
Configure the ZH126 with 4 to 10 industrial Kyocera printheads.
Double-Row / Symmetrical Arrays
Flexible printhead configurations designed around production requirements.
Up to 3,600 DPI Addressability
High-resolution addressability supports detailed graphics and production-quality output.
Engineered for Accurate Rigid-Media Production
Consistent hybrid production requires precise media positioning and reliable substrate control. The ZH126 incorporates production-focused features designed to simplify setup, secure rigid substrates, and help protect the print system during operation.
Independently Controlled Vacuum Zones
Independently controlled vacuum zones maximize substrate hold-down power during rigid-media printing.
Retractable Registration Bar
Helps operators position rigid media accurately and consistently for board production.
Automatic Thickness Measurement
Automatically measures substrate thickness to simplify setup across different media types.
Static Suppression
Integrated static suppression helps support consistent print performance across challenging substrates.
Printhead Crash Protection
Crash bars help protect the printheads from substrate strikes during production.
TopJet Print Controller
Easy-to-use print control designed to support efficient day-to-day production operation.
More Than Standard CMYK
The ZH126 uses VOC-free UV-curable inks with CMYK plus optional white and water-cooled LED curing technology for a wide range of rigid and flexible applications.
Optional White Ink
Add white ink capability for specialty media, transparent substrates, and expanded application flexibility.
Color / White / Color
Support layered Color/White/Color printing for specialty graphics and applications viewed from multiple sides.
Water-Cooled LED Curing
Industrial water-cooled LED curing provides efficient UV curing across demanding production applications.
Built for Versatile Hybrid Applications
The ZH126 combines 3.2-meter width, high production speed, and rigid-or-roll capability for a broad range of graphics applications.
Signage
Produce indoor and outdoor rigid signage directly to board substrates.
Display Graphics
Create retail, exhibition, POP, and promotional display graphics.
Banners
Produce wide-format roll-fed banners and flexible graphics.
Specialty Media
Expand applications with optional white ink and direct-to-substrate printing.
High-Volume Boards
Automatic print-cycle capability supports efficient repetitive board production.
ZH126 Specifications
Key production specifications for the Fluid Color ZH126.
Why Choose the ZH126?
The ZH126 combines Kyocera industrial printhead technology, 3.2-meter print width, sophisticated rigid-media handling, and high production speeds with the flexibility to move between rigid and roll-fed applications.
- Print speeds up to 2,848 square feet per hour
- 125.98-inch / 3.2-meter maximum printing width
- Rigid and roll-to-roll printing capability
- Kyocera industrial printheads
- 4–10 printhead configurations
- Up to 3,600 DPI addressability
- CMYK with optional white ink
- Media tables included with printer
- Maximum media thickness of 1.96 inches
- Independently controlled vacuum zones
- Retractable rigid-media registration bar
- Automatic media thickness measurement
- Automatic print-cycle capability
- Water-cooled LED UV curing
- Static suppression and printhead crash protection
- Caldera, ONYX, and third-party RIP compatibility
- 3-year parts / 1-year labor warranty
Print It All — Rigid or Roll.
Talk with Fluid Color about how the ZH126 can bring 3.2-meter hybrid production, Kyocera printhead performance, and speeds up to 2,848 square feet per hour to your operation.
