Hybrid Series
The Fluid Color hybrid printers are reliable, high-speed LED curable Hybrid printers. Fluid Color offers more size, configurations, and printhead options than other companies, creating a printer that fits your business needs.
Ricoh Gen6 Print Heads
R126H Turbo/ R98H Turbo/ R63H Turbo

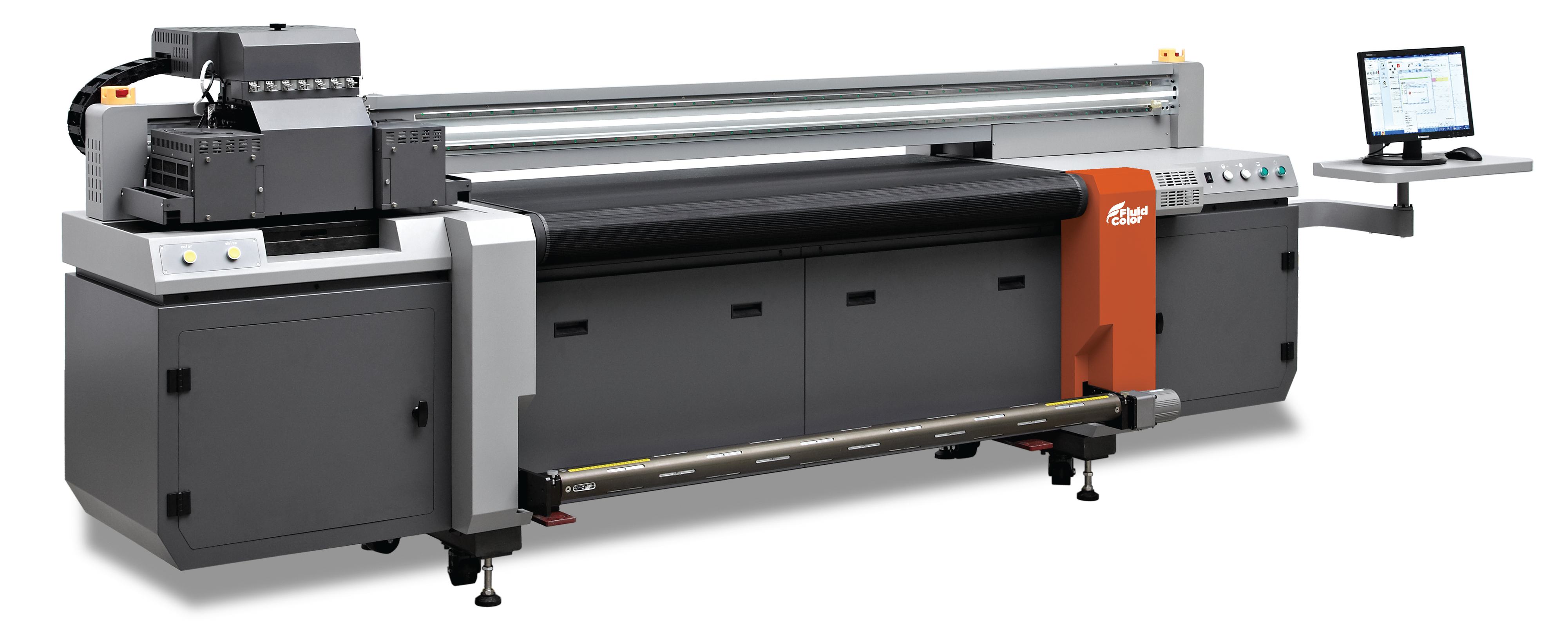

R63H Turbo
63” LED Hybrid for size-restricted customers. Small size, big versatility with Ricoh Gen6 printheads

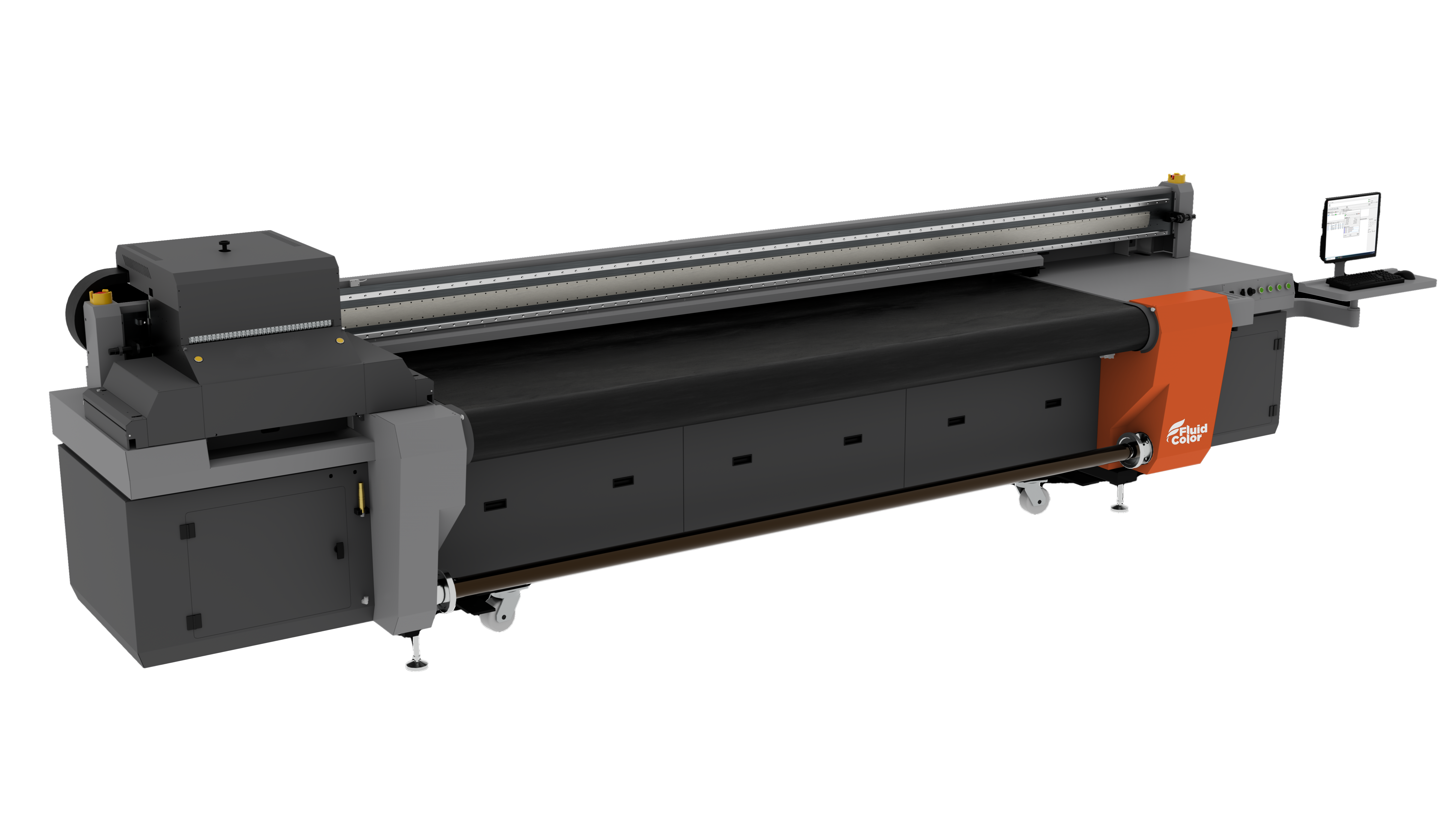

R98H Turbo
Our most popular Hybrid size. 98” LED Hybrid with Ricoh Gen6 printheads for versatility and speed.
R126H Turbo
126” LED Hybrid printer with Ricoh Gen6 printheads that fits all your production needs and has great standard features.
Kyocera Print Heads
Z126H Turbo/ Z98H Turbo
Z98H Turbo
Our FASTEST printer. 98” LED Hybrid with 3 rows of symmetrical Kyocera printheads.

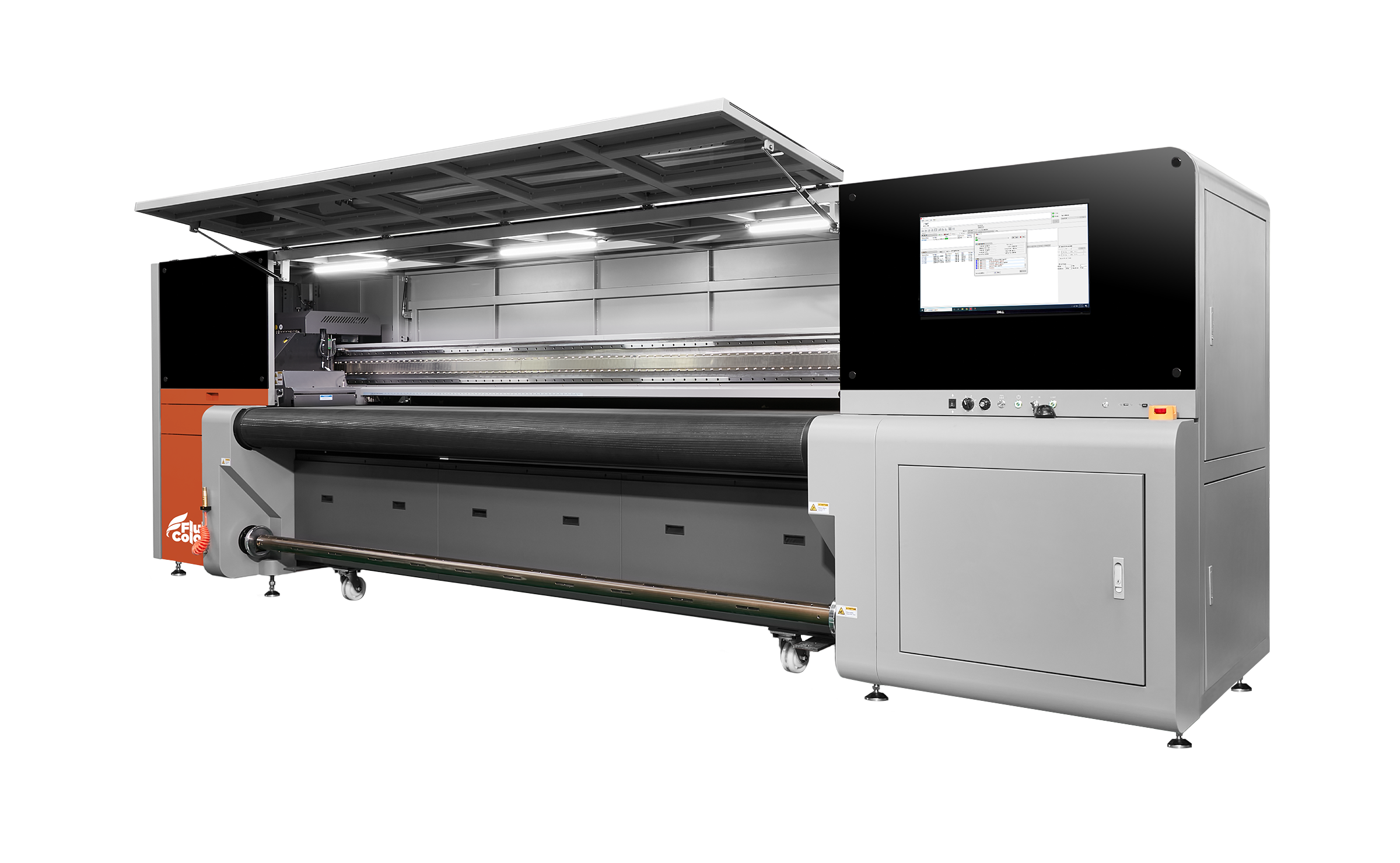

Z126H Turbo
126” LED Hybrid printer with symmetrical Kyocera printheads for some of the fastest speeds.
All our Hybrids come with the following.
- Greyscale technology for optimal quality.
- Reliable though simplicity.
- Belt drive or Linear Magnetic Rail System for increased speed, reliability, and drop placement accuracy.
- 1.96” maximum Z-Axis print height.
- LED Curable inks specifically designed for Fluid Color.
- Fluid Color has more color configurations to fit any printing needs.
- Works with Onyx and Caldera.
- Water-cooled LED lamps with 395nm wavelength.
- Full bleed capability.
- Registration bar for added reliability and consistent accuracy..
- Crash Bars for increased reliability and safety.
- Integrated Static Reduction Systems for reduced static when printing.
- Vacuum System that provides maximum holding power.
- Advanced nozzle open time for increased productivity and less nozzle cleaning.
- Automatic media height detection.
- Warranty: Printer – 2 years parts and 1-year labor, labor by an authorized dealer. Computer/ Software – 1-year parts and labor, labor provided by an authorized dealer. PC / Controller – 1-year parts. Printheads - from manufacturer’s defects for 1 yr. Head strikes and operator errors do not cover damaged print heads.
Hybrid Datasheet
| Model | R63H Turbo | R98H Turbo | R126H Turbo | Z126H Linear | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Printhead | Ricoh Gen6 | Ricoh Gen6 | Ricoh Gen6 | Kyocera | |||||||
| Number of Printheads | 2-8 (Double Row) |
2-10 (Double Row) |
2-10 (Double Row) |
4-10 (DR, Symmetrical Array) |
|||||||
| Print Speeds | 2p-Express @ 620 sq ft/hr or 16 bph 6p-Outdoor @ 330 sq ft/hr or 9 bph 12p-Quality @ 159 sq ft/hr or 4.5 bph |
2p-Express @ 697 sq ft/hr or 20 bph 6p-Outdoor @ 441 sq ft/hr or 12 bph 12p-Quality @ 241 sq ft/hr or 7 bph |
2p-Express @ 815 sq ft/hr or 20 bph 6p-Outdoor @ 491 sq ft/hr or 12 bph 12p-Quality @ 253 sq ft/hr or 7 bph |
2p-Express @ 2848 sq ft/hr or 60 bph 6p-Outdoor @ 1073 sq ft/hr or 27 bph 12p-Quality @ 482 sq ft/hr or 12 bph |
|||||||
| Addressability | up to 1200 x 2400 dpi | up to 1200 x 2400 dpi | up to 3600 dpi | ||||||||
| Max Printing Width | 1.6 m (62.99 in) | 2.5 m (98.42 in) | 3.2 m (125.98 in) | ||||||||
| Max Thickness | 50 mm (1.96 in) | ||||||||||
| Ink Technology | UV-Curable Inks, Eco-friendly (VOC free) | ||||||||||
| Ink Set | CMYK+Optional White & Varnish | CMYK+Optional White & Varnish | CMYK+Optional White | ||||||||
