ZF105 – 10′ x 5′

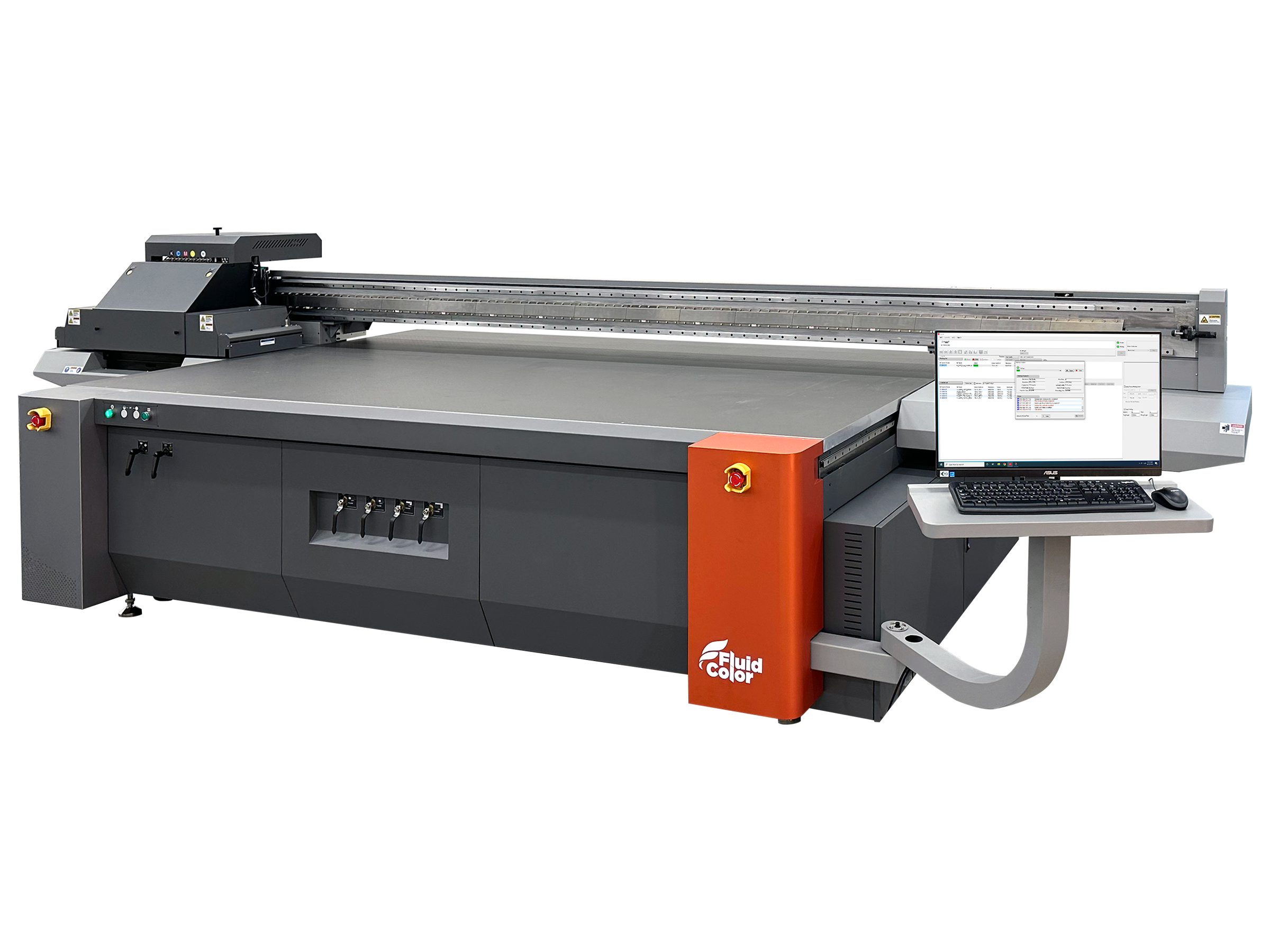

Fluid Color ZF105
High-production 10′ × 5′ LED UV flatbed printing powered by industrial Kyocera printheads at speeds up to 2,689 square feet per hour.
The Fluid Color ZF105 is a large-format industrial LED UV flatbed printer designed for high-speed direct-to-substrate production. With Kyocera printhead technology, a 10.17 × 5.25-foot print area, multiple printhead configurations, and 2-pass production speeds reaching up to 2,689 square feet per hour, the ZF105 delivers large-format capacity, industrial performance, and rigid-media versatility for demanding production environments.
Large-Format Flatbed Production with Kyocera Performance
The ZF105 combines the speed of industrial Kyocera printhead technology with an expanded 10′ × 5′-class flatbed format for direct printing across large rigid sheets, panels, and specialty substrates.
With a maximum print area of 10.17 × 5.25 feet, the ZF105 gives print providers additional capacity for oversized materials while maintaining the high-production performance expected from the Z-Series platform.
Up to 2,689 Square Feet Per Hour
The ZF105 provides multiple production modes so operators can select the right balance of throughput and print quality for each application.
2-pass mode reaches speeds up to 2,689 square feet per hour, 6-pass mode reaches up to 990 square feet per hour, and 12-pass mode reaches up to 445 square feet per hour.
More Flatbed Area. More Production Possibilities.
The ZF105 combines an oversized industrial flatbed, high-speed Kyocera printing technology, and LED UV curing to support demanding large-format direct-to-substrate applications.
10.17′ × 5.25′ Print Area
Expanded bed capacity provides room for oversized rigid sheets, panels, signs, and specialty applications.
Up to 3.94″ Thick
Print directly onto rigid substrates up to 3.94 inches thick for expanded application flexibility.
Uni & Bidirectional Printing
Supports both unidirectional and bidirectional printing to balance image quality and production speed.
Powered by Kyocera Printheads
The ZF105 uses industrial Kyocera printhead technology with configurations designed for high-production direct-to-substrate printing. Double-row and symmetrical-row configurations provide flexibility for different throughput and application requirements.
4–8 Printheads — Double Row
Industrial double-row Kyocera configuration for high-quality production printing.
8–10 Printheads — Symmetrical Row
High-production symmetrical configuration for maximum ZF105 throughput.
Industrial Kyocera Performance
Built around industrial printhead technology for demanding production environments.
Print Directly to a Wide Range of Rigid Media
The ZF105 is designed for large-format direct-to-substrate printing across common signage, display, industrial, and specialty rigid materials.
Signage Materials
Produce indoor and outdoor direct-to-substrate signage across rigid materials.
Acrylic
Print directly onto acrylic for display, signage, and specialty applications.
Metal Sheets
Produce graphics directly onto compatible metal sheet materials.
PVC & Plastic Sheets
Support direct printing on PVC, plastics, PC, ABS, and similar rigid substrates.
Corrugated Boards
Produce large signs, displays, and promotional graphics directly onto corrugated media.
Specialty Boards
Expand production to lightweight boards and specialty direct-print substrates.
Expanded Ink Capability
The ZF105 uses VOC-free UV / LED-curable ink technology and supports expanded ink configurations for applications requiring more than standard CMYK production.
CMYK + Light Colors
Expanded color configurations support detailed and high-quality production graphics.
White & Varnish
White and varnish capabilities support transparent, colored-media, decorative, and specialty applications.
LED UV Curing
Industrial LED UV curing provides efficient curing for direct-to-substrate production.
Built for Large-Format Flatbed Applications
The ZF105 combines oversized rigid-media capacity, Kyocera printhead speed, and direct-to-substrate production for a broad range of commercial graphics applications.
Signage
Produce large indoor and outdoor rigid signs directly to board substrates.
Display Graphics
Create retail, POP, exhibition, and promotional display graphics.
Oversized Panels
Take advantage of the expanded 10.17 × 5.25-foot bed for larger panels and sheets.
Specialty Printing
Expanded ink configurations support specialty and value-added applications.
Production Boards
High-speed Kyocera configurations support demanding rigid-board production.
ZF105 Specifications
Key production specifications for the Fluid Color ZF105 Kyocera flatbed printer.
Why Choose the ZF105?
The ZF105 combines an expanded 10′ × 5′-class flatbed with industrial Kyocera printhead technology and high production speeds to create a powerful platform for large-format direct-to-substrate printing.
✓ 2-pass speeds up to 2,689 square feet per hour
✓ 6-pass speeds up to 990 square feet per hour
✓ 12-pass speeds up to 445 square feet per hour
✓ 10.17′ × 5.25′ maximum print area
✓ Industrial Kyocera printheads
✓ Up to 10 printheads
✓ Double-row and symmetrical-row configurations
✓ Maximum substrate thickness of 3.94 inches
✓ Unidirectional and bidirectional printing
✓ VOC-free UV / LED-curable ink technology
✓ Caldera RIP support
More Flatbed. More Speed. More Possibilities.
Talk with Fluid Color about how the ZF105 can add large-format Kyocera flatbed production, speeds up to 2,689 square feet per hour, and flexible direct-to-substrate printing to your operation.
