Roll to Roll Series
The Fluid Color Roll to Roll printers are reliable, high-speed LED curable Roll to Roll printers. Fluid Color offers more size, configurations, and printhead options than other companies, creating a printer that fits your business needs.
Ricoh Gen6 Print Heads

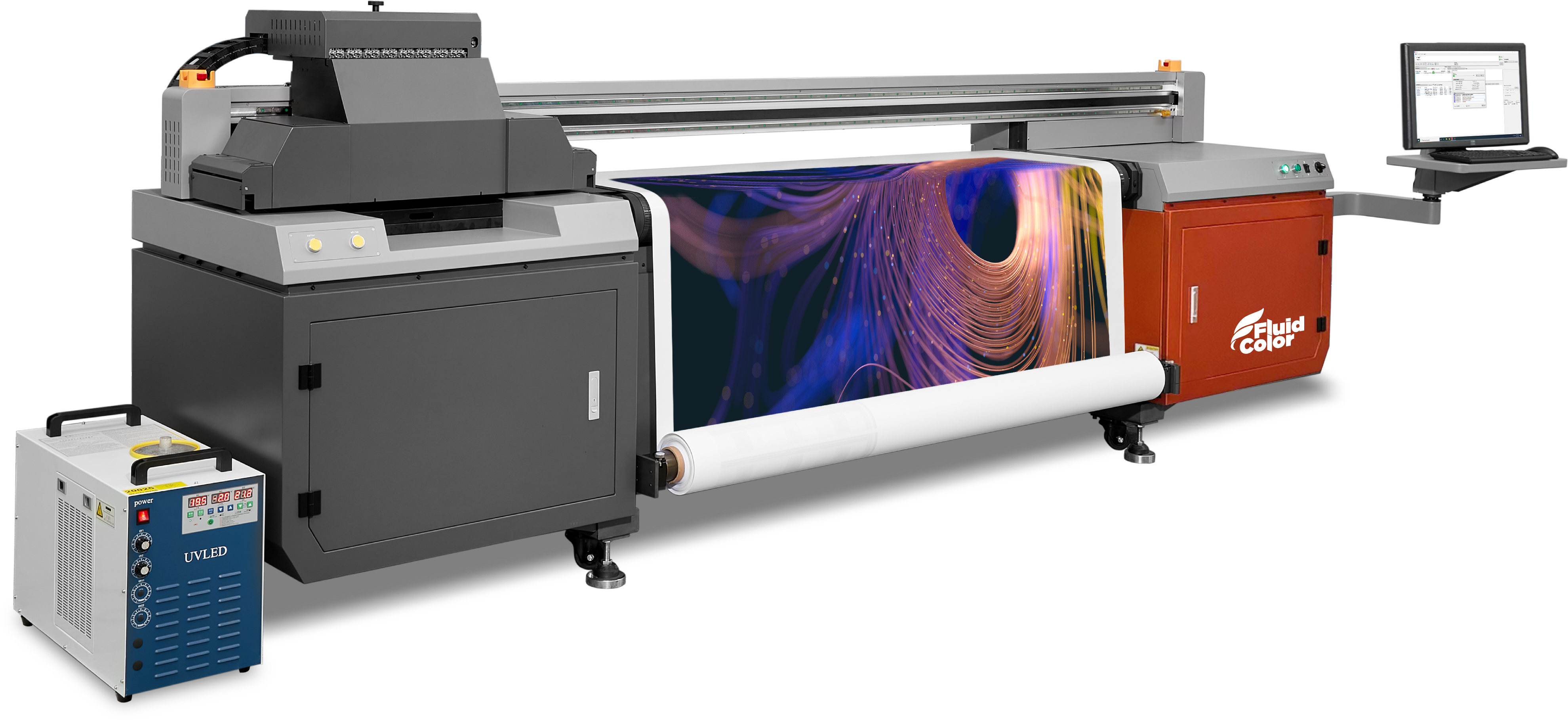

R70R Turbo
R70R Turbo
70” LED Roll to Roll for customer looking for fast speeds and high quality.
Kyocera Print Heads
Z126R/ Z126R Turbo/Z196R Turbo/
Z126R
Our base line 126” roll to roll LED printer with Kyocera printheads.
Z126R Turbo
126” LED Roll to Roll printer with linear rail and symmetrical Kyocera printheads for some of the fastest print speeds.

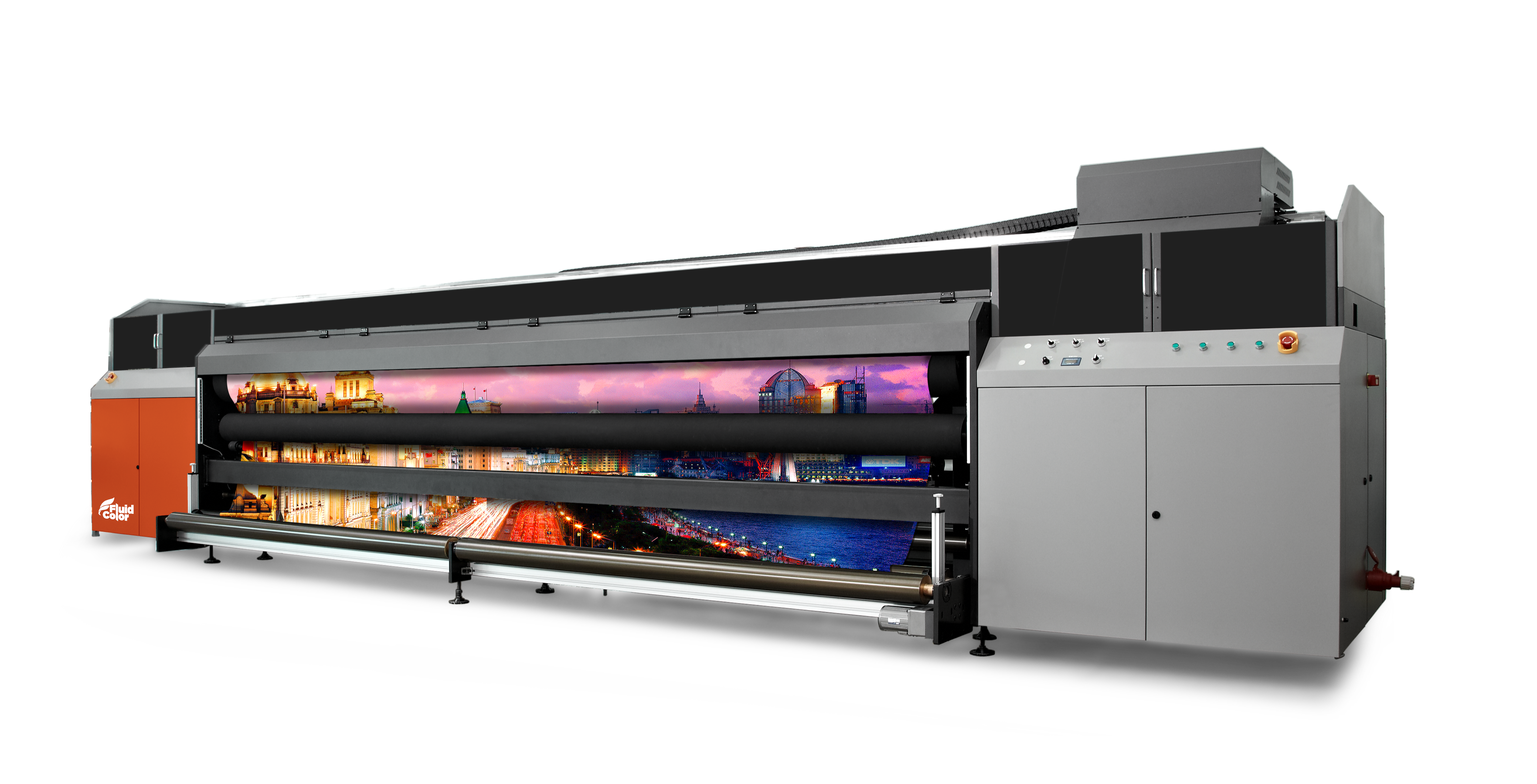

Z196R Turbo
196” LED Roll to Roll printer with linear rail and symmetrical Kyocera printheads for some of the fastest speeds.
All our Roll to Rolls come with the following.
- Greyscale technology for optimal quality.
- Reliable though simplicity.
- Belt drive or Linear Magnetic Rail System for increased speed, reliability, and drop placement accuracy.
- .79” maximum Z-Axis print height.
- LED Curable inks specifically designed for Fluid Color.
- Fluid Color has more color configurations to fit any printing needs.
- Works with Onyx and Caldera.
- Water-cooled LED lamps with 395nm wavelength.
- Full bleed capability.
- Registration bar for added reliability and consistent accuracy..
- Crash Bars for increased reliability and safety.
- Integrated Static Reduction Systems for reduced static when printing.
- Vacuum System that provides maximum holding power.
- Advanced nozzle open time for increased productivity and less nozzle cleaning.
- Automatic media height detection.
- Warranty: Printer – 2 years parts and 1-year labor, labor by an authorized dealer. Computer/ Software – 1-year parts and labor, labor provided by an authorized dealer. PC / Controller – 1-year parts. Printheads - from manufacturer’s defects for 1 yr. Head strikes and operator errors do not cover damaged print heads.
Roll to Roll Datasheet
| Model | R70R Turbo | Z126R | Z126R Turbo | Z196R Turbo | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Printhead | Ricoh Gen6 | Kyocera | Kyocera | Kyocera | |||||||
| Number of Printheads | 2-9 (Triple Row) |
2-8 (Double Row) |
4-12 (Double Row,Symmetrical) |
4-12 (Double Row,Symmetrical) |
|||||||
| Print Speeds | 2p-Express @ 1290 sq ft/hr 6p-Outdoor @ 722 sq ft/hr 12p-Quality @ 329 sq ft/hr |
2p-Express @ 1425 sq ft/hr 6p-Outdoor @ 695 sq ft/hr 12p-Quality @ 335 sq ft/hr |
2p-Express @ 3052 sq ft/hr 6p-Outdoor @ 1061 sq ft/hr 12p-Quality @ 485 sq ft/hr |
2p-Express @ 3267 sq ft/hr 6p-Outdoor @ 1171 sq ft/hr 12p-Quality @ 506 sq ft/hr |
|||||||
| Addressability | up to 1200 x 2400 dpi | up to 1210 x 1200 dpi | up to 3600 dpi | ||||||||
| Max Printing Width | 1800 mm (70.86 in) | 3.2 m (125.98 in) | 3.2 m (125.98 in) | 5.0 m (196.85 in) | |||||||
| Max Thickness | 25 mm (0.98 in) | 20 mm (0.79 in) | 20 mm (0.79 in) | ||||||||
| Ink Technology | UV-Curable Inks, Eco-friendly (VOC free) | ||||||||||
| Ink Set | CMYK+Optional White & Varnish | CMYK+Optional White | CMYK+Optional White | ||||||||
